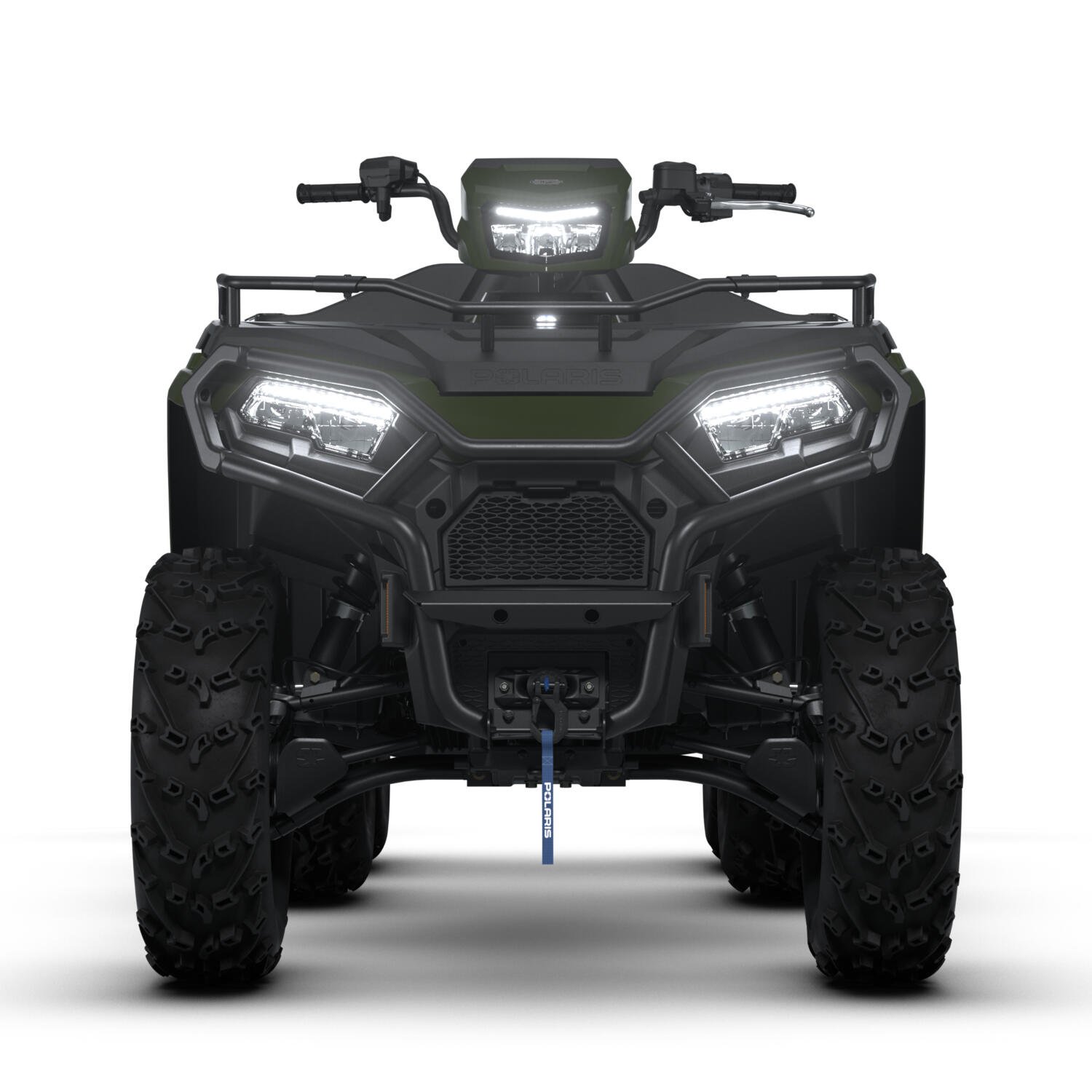

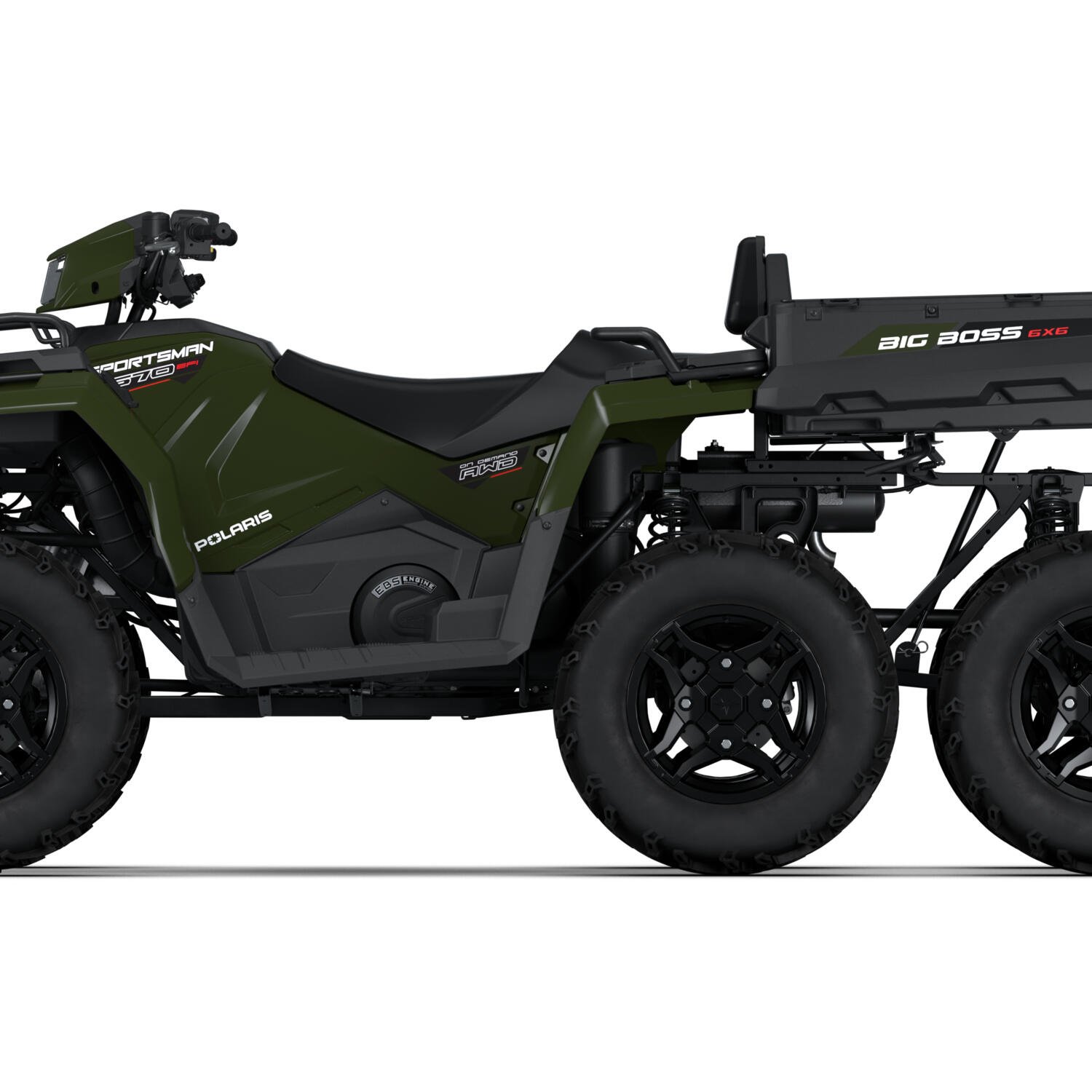

2026 Polaris Sportsman 6x6 570
All Terrain Vehicle (ATV)
Starting at $14,999 MSRP
Specs and Features
Engine & Drivetrain
Cylinders Displacement
567 cc
Cooling
Liquid
Drive System Type
One-touch on-demand AWD/2WD
Driveline Features
Includes: engine braking system (EBS), Active Descent Control (ADC)
Engine Type
Prostar 4-stroke DOHC single cylinder
Fuel System/ Battery
Electronic fuel injection / 340 CCA
Horsepower
44
Transmission/Final Drive
Automatic PVT P/R/N/L/H in-line shifting
Dimensions
Bed Box Dimensions
38 x 39 x 8" (96.5 x 99.1 x 20.3 cm)
Front/Rear Rack Capacity
90 lbs. / 180 lbs. (40.8 kg / 81.6 kg)
Curb Weight
1248 lbs. (566 kg)
Estimated Dry Weight
1,194 lbs. (542 kg)
Fuel Capacity
6.75 gal (25.5 L)
Ground Clearance
11.5" (29 cm)
Towing Capacity
1,500 lbs. (680 kg)
Hitch Type
Standard 2 in (5.08 cm) receiver
Overall Vehicle Size (L x W x H)
119" x 49.6" x 52.7" (302 x 126.2 x 133.9 cm)
Payload Capacity
1,115 lbs. (507 kg)
Person Capacity
2
Seat Height
36" (91.4 cm)
Wheelbase
86.5" (219.7 cm)
Suspension
Front Suspension
Sealed arched dual A-arm with 8.9" (22.6 cm) travel
Rear Suspension
Sealed dual A-arm, IRS, 6.3" (16 cm) travel
Tires / Wheels
Front Tires
26 x 8-14; CST
Rear Tires
26 x 10-14; CST
Wheels
14" (35.6 cm) aluminum
Brakes
Front/Rear Brakes
Single lever, 4-wheel hydraulic disc with hydraulic rear foot brake
Parking Brake
Park in-transmission / lockable hand lever
Technology
Connected Vehicle Services
Not equipped
Touch Screen Display
Not equipped, accessory options available
Comfort and Convenience
Driver Instrumentation
All-digital gauge: geofencing, speed limiter, speedometer, odometer, tachometer, two tripmeters, hour meter, gear indicator, fuel gauge, AWD indicator, volt meter, coolant temperature, hi-temp light
Seat Type
Saddle seat + passenger saddle seat
Electronic Power Steering
Multi-select EPS
Speed Limiting
Equipped
Ride Control
Ride Control (easy-effort throttle, speed limiting, geofencing, PIN-activated security system), 3 drive modes
System
Polaris P.A.S.S Anti-Theft System
Equipped
Lighting and Electrical
Lighting
LED pod high beam, LED low-beam headlights, dual brake lights/taillights
Electrical System
12-volt power plug, in-pod trickle charging port, pre-wired for hand and thumb warmers
Exterior Features
Winch
3,500 LB Winch with synthetic rope and Auto Stop
Vehicle Protection
Front and rear A-arm guards, front-trail bumper, front rack extender, metal bed box rails
Cargo System
5 gal (18.9 L) front dry storage, Lock & Ride dump box rails and rear racks, D-rings in dump box
Additional Specifications
Warranty
6-month factory warranty with unlimited miles
ALL DAY COMFORT
• TAME MORE TERRAIN: Effortlessly take on diverse terrain with a 2.5x more rigid chassis that optimizes ride and handling on the 6-wheel ATV. Plus, an advanced engine braking system (EBS) with Active Decent Control (ADC) delivers a smoother, more controlled deceleration downhill.
• SMOOTHER RIDE: New enhanced suspension with upgraded sealed bushings and 11.5" of ground clearance work together to absorb trail ruts and bumps—enabling a smooth, comfortable ride even on rugged terrain.
• LESS FATIGUE, MORE FUN: Multi-select electronic power steering (EPS) with customizable levels of steering assist enables more effortless handling—reducing body fatigue to help boost your stamina for extended rides.
• TRAIL TO TASK TRACTION: Take the trail less traveled with unmatched traction. On-demand AWD detects tire slip in wet or loose conditions, instantly delivering power to all six wheels on this 6x6 ATV for optimal traction and control.
• SMOOTHER RIDE: New enhanced suspension with upgraded sealed bushings and 11.5" of ground clearance work together to absorb trail ruts and bumps—enabling a smooth, comfortable ride even on rugged terrain.
• LESS FATIGUE, MORE FUN: Multi-select electronic power steering (EPS) with customizable levels of steering assist enables more effortless handling—reducing body fatigue to help boost your stamina for extended rides.
• TRAIL TO TASK TRACTION: Take the trail less traveled with unmatched traction. On-demand AWD detects tire slip in wet or loose conditions, instantly delivering power to all six wheels on this 6x6 ATV for optimal traction and control.
ADVANCED CAPABILITY
• POWER THROUGH TASKS: Power through tasks and trails with a 44-hp engine that delivers the performance to go further.
• MOVE LARGER LOADS: Move larger loads more efficiently and confidently, with a class-leading 800-lb. dump box featuring factory-integrated D-rings with multiple tie-down points to secure cargo on your 6-wheel ATV.
• PERFORM AT YOUR PACE: Set your pace with the new, selectable speed-limit feature to achieve consistent performance for precision-driven tasks, such as spraying on your property or farm.
• RIDE PROTECTED AND PREPARED: Be ready for anything with a front bumper that enhances protection for your 6-wheeler and a 3,500 LB. winch with synthetic rope and Auto Stop to clear heavier obstacles in your way.
• SAVE TIME ON SERVICE: Extended service intervals offer 2x more time between oil changes and other routine maintenance—so you can spend less time on upkeep and more on what you love.
• MOVE LARGER LOADS: Move larger loads more efficiently and confidently, with a class-leading 800-lb. dump box featuring factory-integrated D-rings with multiple tie-down points to secure cargo on your 6-wheel ATV.
• PERFORM AT YOUR PACE: Set your pace with the new, selectable speed-limit feature to achieve consistent performance for precision-driven tasks, such as spraying on your property or farm.
• RIDE PROTECTED AND PREPARED: Be ready for anything with a front bumper that enhances protection for your 6-wheeler and a 3,500 LB. winch with synthetic rope and Auto Stop to clear heavier obstacles in your way.
• SAVE TIME ON SERVICE: Extended service intervals offer 2x more time between oil changes and other routine maintenance—so you can spend less time on upkeep and more on what you love.
VERSATILITY TO DO MORE
• EXTEND YOUR DAY: LED pod and headlights offer enhanced visibility for early morning and late-night tasks—so you can get more done in a day.
• PACK WHAT YOU NEED: A 5-gallon front storage bin provides more space for stowing tools and gear. Add accessory racks and grips to optimize the space for your use.
• RIDE 2-UP OR 1-UP: A 5-gallon front storage bin provides more space for stowing tools and gear. Add accessory racks and grips to optimize the space for your use.
• PACK WHAT YOU NEED: A 5-gallon front storage bin provides more space for stowing tools and gear. Add accessory racks and grips to optimize the space for your use.
• RIDE 2-UP OR 1-UP: A 5-gallon front storage bin provides more space for stowing tools and gear. Add accessory racks and grips to optimize the space for your use.
